904l S31803 Stainless Steel Seamless Pipe , Stainless Steel Round Tube Sch10

รายละเอียดสินค้า

สถานที่กำเนิด: จีน

ชื่อแบรนด์: zheheng

ได้รับการรับรอง: ISO9001 PED

หมายเลขรุ่น: 6 มม.-710 มม

เอกสาร: ใบแสดงผลิตภัณฑ์

เงื่อนไขการชำระเงินและการจัดส่ง

จำนวนสั่งซื้อขั้นต่ำ: ต่อรองได้

ราคา: ต่อรองได้

รายละเอียดการบรรจุ: ในชุดด้วยวัสดุกันน้ำหรือบรรจุลังไม้

เวลาการส่งมอบ: 30 วัน

เงื่อนไขการชำระเงิน: l/c, t/t, d/a, d/p

สามารถในการผลิต: 50ตัน/30วัน

หา ราคา ที่ ดี ที่สุด
เน้น:

seamless pipes and tubes

,

ss seamless pipe

วัสดุ:
304
มาตรฐาน:
มาตรฐาน ASTM a312 ,213
รูปร่าง:
ทรงกลม
เทคนิค:
ไร้รอยต่อ
แอปพลิเคชัน:
ประตูและหน้าต่าง
บรรจุุภัณฑ์:
การบรรจุที่ทอ
วัสดุ:
304
มาตรฐาน:
มาตรฐาน ASTM a312 ,213
รูปร่าง:
ทรงกลม
เทคนิค:
ไร้รอยต่อ
แอปพลิเคชัน:
ประตูและหน้าต่าง
บรรจุุภัณฑ์:
การบรรจุที่ทอ
904l S31803 Stainless Steel Seamless Pipe , Stainless Steel Round Tube Sch10

304 Stainless Steel Seamless Pipe sch10



304 stainless steel seamless pipe is a hollow long strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial conveying pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used to produce a variety of conventional weapons, barrels, shells and so on. Steels that are open at both ends and have a hollow section, and whose length is larger than the circumference of the section, can be called steel pipes. When the length is small compared to the perimeter of the section, it can be called a pipe section or a tubular fitting, which are all in the category of pipe products.



1) Product name: stainless steel seamless pipe, stainless steel tube, stainless steel tube, stainless steel tube
2) Product type: stainless steel rolling, perforation, cold drawing, pickling, cold rolling, etc.
3) Processing method: mechanical straight pull, two-roll cold rolling
4) Surface treatment: annealing pickled surface, polished bright surface
5) Production size: outer diameter 10-219mm, wall thickness 1-10mm, length can be cut according to customer requirements
6) Product material: 304,321,316 stainless steel
[304 stainless steel tube]:
1) Product name: stainless steel welded pipe, sanitary grade welded pipe, stainless steel fine drawn pipe, stainless steel cold rolled pipe
3) Processing methods: argon arc welding, plasma welding, in-line annealing
4) Surface treatment: annealing pickled surface, polished bright surface, on-line bright annealing
5) Production size: outer diameter 19-325mm, wall thickness 1-4mm, length can be cut according to customer requirements
6) Product material: 304,321,316 stainless steel


Applications :
Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boilers, nuclear, energy, construction field, ships building industry, war and electricity industry, boiler heat exchanger, machiner and hardware fields and medical equipment, fertilizer, etc

stainless steel pipe dimentions

Dimensions for ASME/ANSI Standards               Unit:mm
                    B16.9 B16.28 B36.10
Nominal pipe Size(NPS) Outside Diameter Nominal Wall Thickness
    Sch5s SCH10S Sch20 Sch30 Sch40 STD Sch80 XS Sch160 XXS
8 1/4 13.7 0.54 - 1.65 - 1.85 2.24 2.24 3.02 3.02 - -
10 3/8 17.1 0.675 - 1.65 - 1.85 2.31 2.31 3.20 3.20 - -
15 1/2 21.3 0.84 1.65 2.11 - 2.41 2.77 2.77 3.73 3.73 4.78 7.47
20 3/4 26.7 1.05 1.65 2.11 - 2.41 2.87 2.87 3.91 3.91 5.56 7.82
25 1 33.4 1.32 1.65 2.77 - 2.90 3.38 3.38 4.55 4.55 6.35 9.09
32 1.1/4 42.2 1.66 1.65 2.77 - 2.97 3.56 3.56 4.85 4.85 6.35 9.70
40 1.1/2 48.3 1.90 1.65 2.77 - 3.18 3.68 3.68 5.08 5.08 7.14 10.15
50 2 60.3 2.38 1.65 2.77 - 3.18 3.91 3.91 5.54 5.54 8.74 11.07
65 2.1/2 73.0 2.88 2.11 3.05 - 4.78 5.16 5.16 7.01 7.01 9.53 14.02

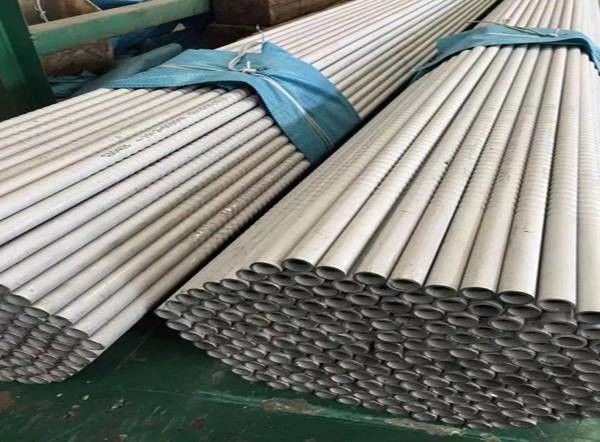

our product show :
904l S31803 Stainless Steel Seamless Pipe , Stainless Steel Round Tube Sch10 0
